Easel with Kickstand

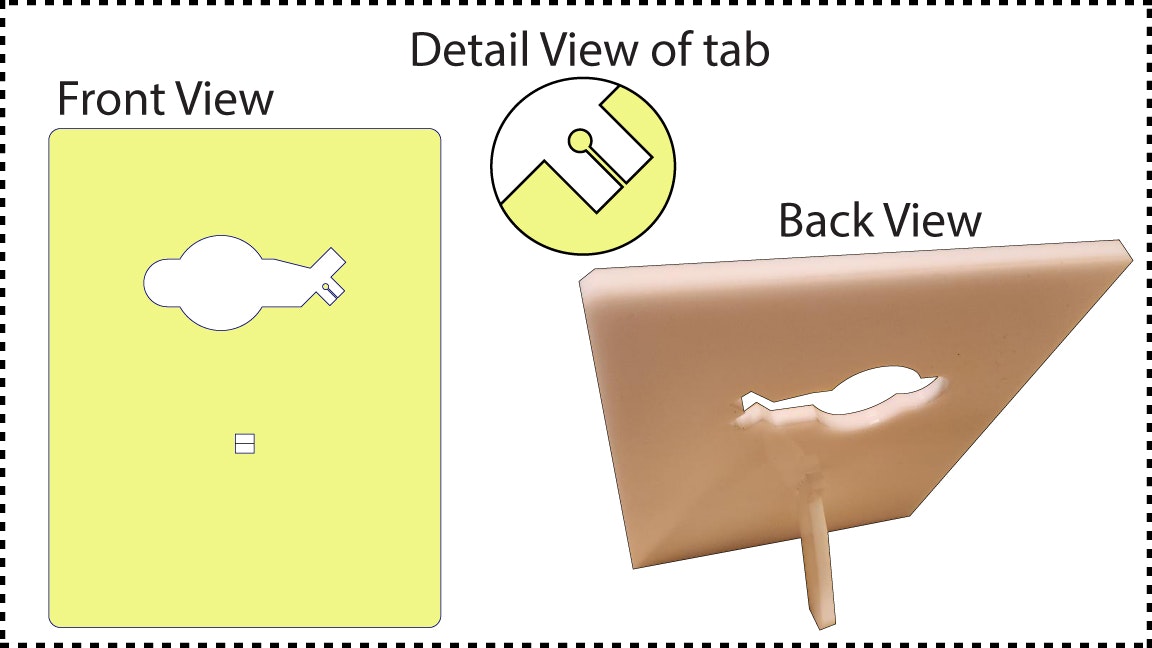

This is a basic Easel with Kickstand where the front measures 4.125" x 5.25". The front size is fixed.

The kickstand tab is inserted into the rectangular slot. If you need to tighten up the height of the tab, increase the size of it. The Tab Height defaults to 0.30", which is 0.02" higher than the slot height. Increase the Tab Height if you want to. Probably no smaller than 0.25" and now larger than 0.50"

The tab has a narrow slot in the middle of it that allows the tab height to slightly compress into the slot.

It is a good idea to test this out on your own material. I tested on both 0.125" and 0.2" acrylic, and it worked for me.

You can also change the Perimeter Type to a square top or a rounded top.

You can also change the Perimeter Type to a square top or a rounded top.

The idea for this came from a Facebook request. That request was a combination of another piece of acrylic glued to the front of this, and it contains a QR code etc for advertising.
