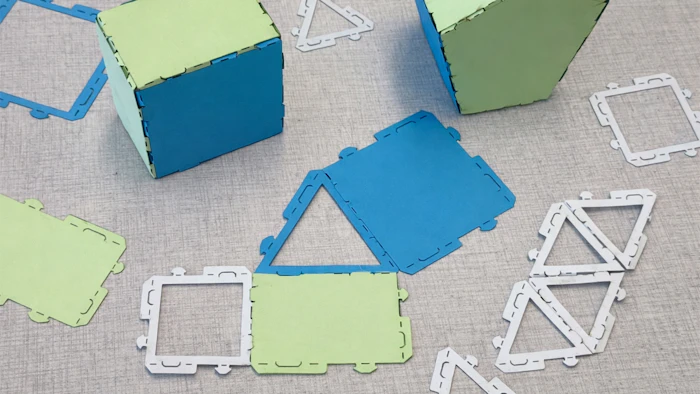

Isogonal Polytopes - Cardstock 3D Construction Kit

Directly inspired by Toby's template showed in the Cuttle Live Stream of Nov 17, 2022 (see video below), this template add second length to make isogonal polytopes.

Isogonal polytopes are polygons and polyhedra that have (or whose faces have) angles of the same measure. They can be regular or semi-regular.

Isosceles triangles (A/B/A) and rectangles (A/B/A/B) are fairly basic examples of isogonal polygons. Polygons are constructed by alternating sides of length A and B.

Templates to download

Those templates have been revamped to be usable all units (by default in millimeters). You can still adapt sheet dimensions (A4 by default). To make managing the files to be cut easier, the names were individualized (e.g.: "Cut Sheet - 6 isogonal polygons - 40-60.svg") .

1. Classic regular polygons ("A" side)

2. Isogonal polygons ("A & B" sides)

If you just want to work with a single unit, here's the component for that:

And if you only want to play or create isogonal poygons:

Inspiration: Cuttle Live Stream
