Surf on Masahiro Chatani's wave

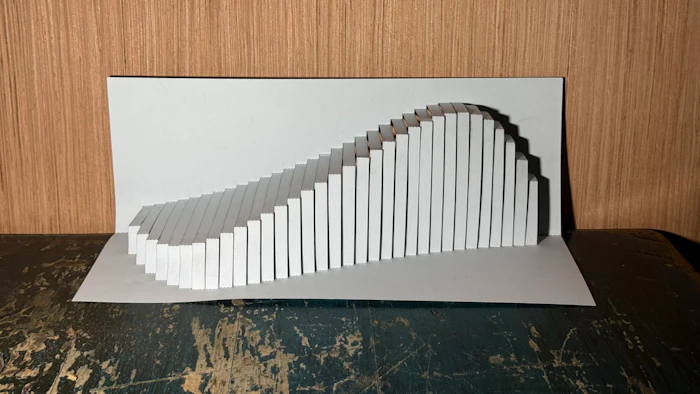

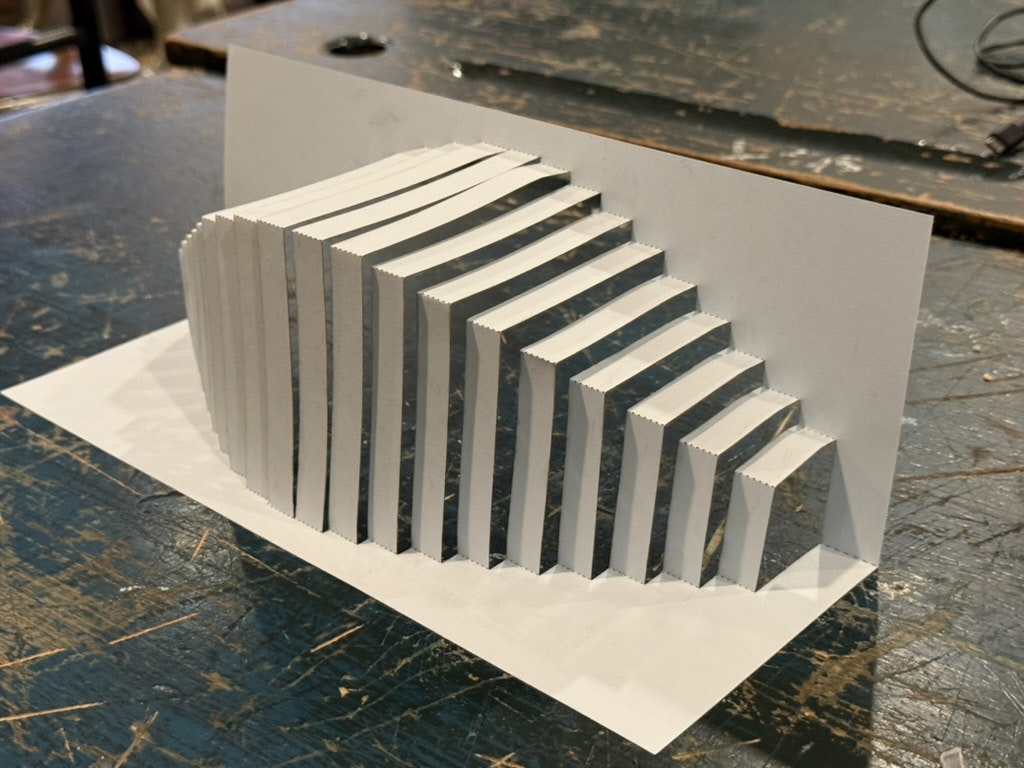

Directly inspired by the wave created and showed by Masahiro Chatani in pages 10 et 43 in his "Paper magic, pop-up paper craft - origamic architecture" (1988), this template let you make your own wave in kirigami.

Instructions

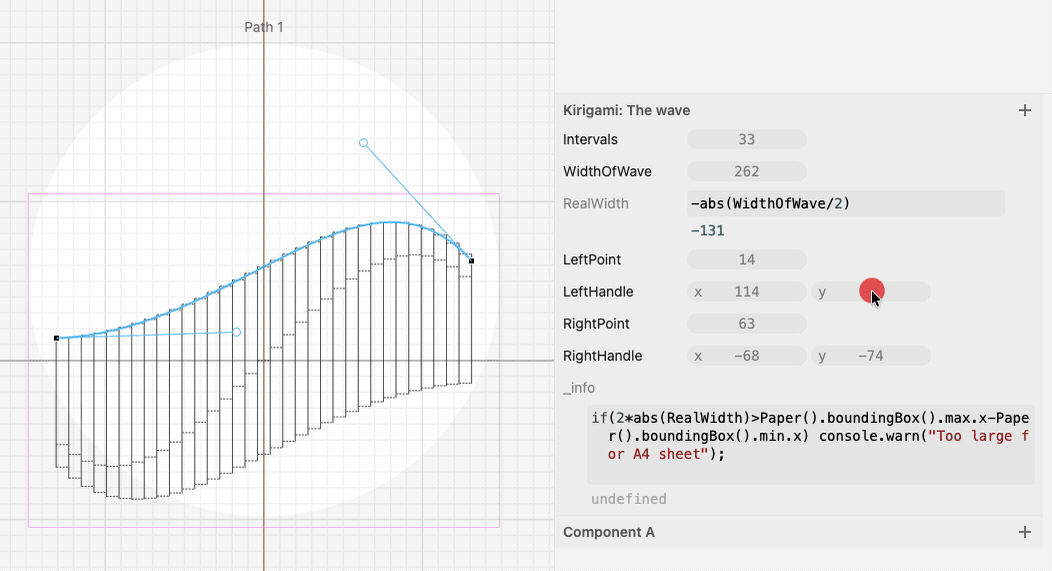

Adjusting number of intervals and width of wave is easy to understand.

For next parameters:

• Left Point: is distance between "Base Line" (=major median of sheet of paper) and left anchor of wave's curve.

• Left Handle: is coordinates of point where wave's curve "go" when start out left point.
  If needed please, see it in action here:



  Bezier Curve Explainer



  Forrest O.

• Idem for Right Point and Right Handle

Better view on hanles

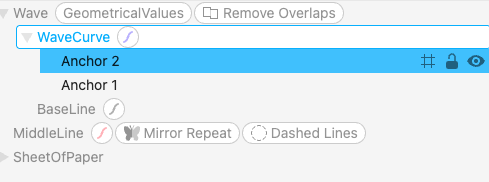

You can view the standard handles during template editing by clicking on one of the WaveCurve Anchors.
