How to use a rotary attachment

A practical resource for setting up, measuring, and troubleshooting laser rotary attachments for cylindrical and tapered objects.

Thanks to Denise for writing up this guide.

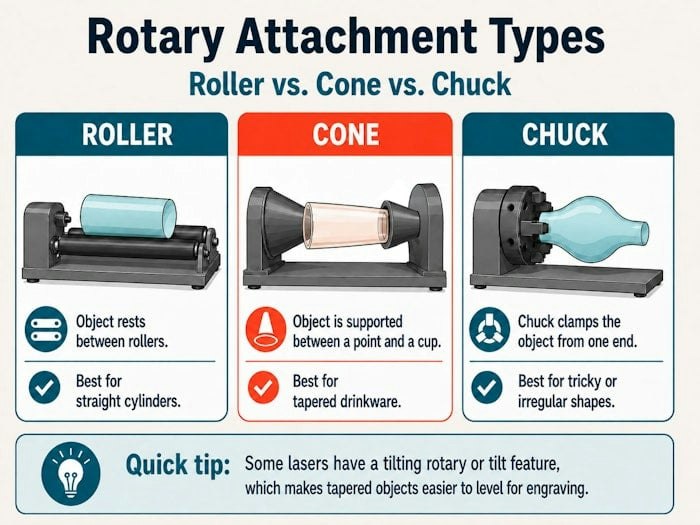

Rotary Attachment Types

Most laser rotary attachments fall into one of three main styles, though they may include tilting as an optional function.

Roller-Style Rotary

The object rests on multiple driven rollers that rotate the outer surface. Typically two rollers support the object from below.

  • Best for straight, uniform cylinders
  • Works well for bottles, dowels, straight sided items

Cone-Style Rotary

The object sits between two opposing tapered cones—typically one concave and one convex—positioned at each end. This design centers the object and supports it from both sides.

  • Best for tapered objects and full-wrap designs
  • Secure hold; works with varied diameters
  • Ideal for glasses, pint glasses, wine glasses with regular rims

Chuck-Style Rotary

The object is held in one or more rotating chucks (adjustable clamps), positioned at one or both ends depending on the system.

  • Best for objects that need clamping pressure to stay secure
  • Works with varied diameters and shapes
  • Excellent for precision and full-wrap designs

Tilting Function (Optional)

Some rotary attachments offer a tilting mechanism to level tapered objects. This is not standard—it's a premium feature on select systems or available as an aftermarket upgrade. Most users work around taper using focus and design adjustments instead.

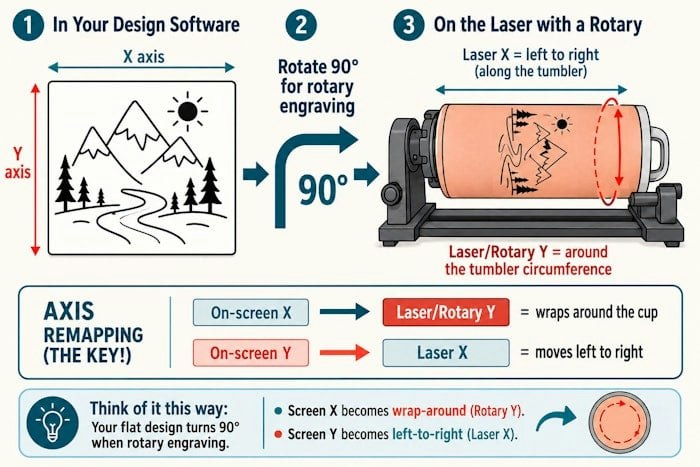

Understanding Rotary Axis Orientation

💡
Most rotary software rotates your design 90 degrees when processing it for the rotary. This can be confusing.

In your design software:

  • X axis = left-right (the width of your design)
  • Y axis = up-down (the height of your design)

After rotary software processes it:

  • Your X dimension (width) now becomes the circumference rotation (Y rotation in laser coordinates)
  • Your Y dimension (height) now runs left-to-right along the object barrel
💡
What this means: If you design something that's 8" wide and 4" tall, it will engrave as 8" around the circumference and 4" left-to-right on the object.

How to handle this:

  1. Check your laser software's preview before engraving
  2. If the orientation is wrong, rotate your design 90 degrees in your design software and re-export
  3. You only need to figure this out once per software—then you know the pattern

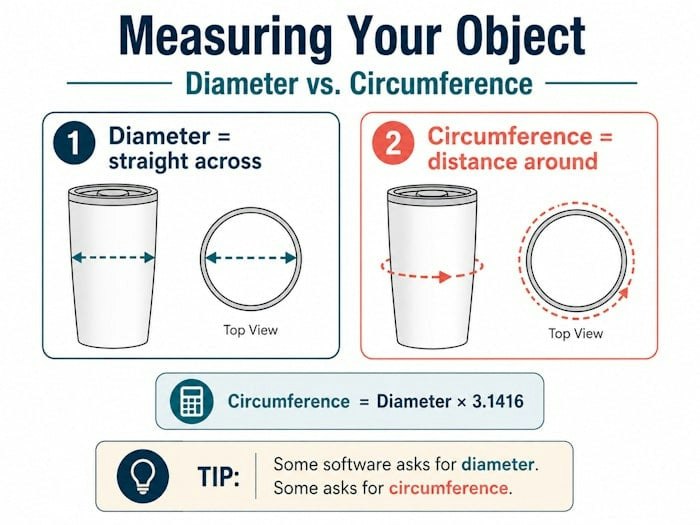

How to measure your object for engraving

The measurement you need is the diameter (or circumference) at the height where your design will sit. This applies to both single-sided and full-wrap designs.

How to Measure

  1. Position your design: decide where the center of the design will sit vertically on the object.
  2. Use calipers to measure diameter at that exact height: Close gently around the object and take 2-3 readings; average them. This gives you the diameter.
  3. Alternatively use a flexible measuring tape for circumference: Wrap it around the object at the same height. Keep it level and snug (not tight). Circumference = diameter × 3.14159 (or diameter * π)
  4. Check what your laser software asks for: Some types of software require the diameter, others need th circumference. Your software will tell you which one.
  5. Measure the available engraving area: this is the straight, engravable barrel length (excluding handles, tapers, or unusable ends).

Why This Matters for Tapered Objects

On tapered objects (pint glasses, tumblers), the circumference changes from top to bottom. Measure at the exact height where the center of your design will sit. This ensures your software calculates rotation correctly, and for full-wrap designs, the seam will meet perfectly at that point.

Single-Sided vs. Full-Wrap Designs

The measurement process is the same for both:

  • Single-sided: Your design sits on one area of the object and doesn't wrap around. You still need to enter the correct diameter/circumference in your software so it knows the object's dimensions.
  • Full-wrap: Your design wraps completely around the object and the ends must meet. Accurate circumference is critical; the seam's alignment depends on it.

Important Setup Specifications

If your object has a large diameter, check your rotary manual or determine:

  • Maximum object diameter: The largest diameter object your rotary can accommodate without the object hitting the laser head as it rotates. This is the same as your Z-axis clearance: the vertical distance from the laser bed to the laser head, minus your focus distance. For example: if the bed-to-head distance is 9" and your focus is 2" below the head, your maximum object diameter at proper focus is 7".

Leveling and Focus

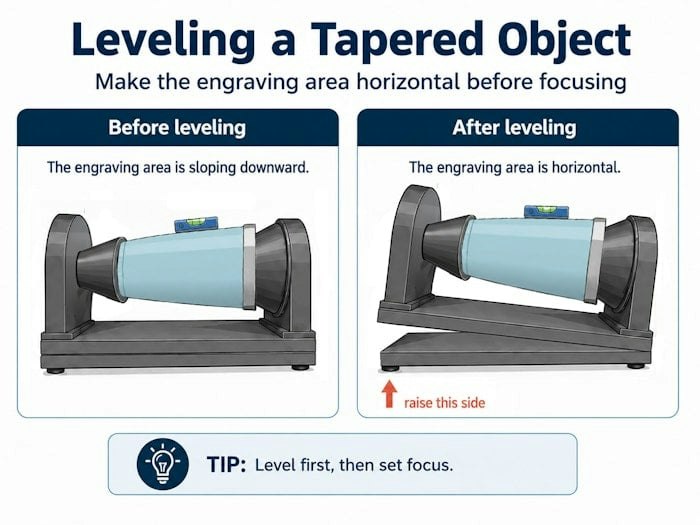

If Your Rotary Has Tilting

If your rotary attachment can tilt, adjust the tilt angle to match your object's taper so the engraving area is parallel to the laser's travel. Use a small bubble level (like this one) placed on the object. Always focus or refocus after leveling.

If Your Rotary Does Not Tilt

  1. Focus at the design center: Focus the laser at the exact height where the middle of your design will sit
  2. Accept that edges will be slightly out of focus: This is normal and often acceptable for most designs
  3. Minimize design height: Keeping your design narrow vertically keeps it within acceptable focus range

Testing Your Design

Single-Sided Designs

For designs that don't wrap all the way around:

  1. Cover the engraving area with blue painter's tape
  2. Run the job at high speed, low power to test placement without fully engraving
  3. Examine the result: Does the design land where you expect? Is it the right size and orientation? Do circles look round or distorted?
  4. Make adjustments (focus, design size, position) as needed
  5. Test again after changes until you're confident

Full-Wrap Designs

For designs that wrap completely around the object with ends that must meet run a Circumference Test Strip:

  1. Create or download a test strip with registration marks at the start and end (width = your circumference measurement)
  2. Place blue painter’s tape on your object at the engraving height
  3. Engrave the test at high speed, low power
  4. Check the marks:
    • Perfect: End marks meet exactly
    • Gap: Circumference is too small; increase by 0.1–0.3" and retest
    • Overlap: Circumference is too large; decrease by 0.1–0.3" and retest
  5. Repeat until the seam is perfect, then record the working circumference
  6. Verify that both your design tool and laser software use this same circumference value

Fixing Egg-Shaped Circles

If circles come out distorted on tapered objects:

  1. Test first: Use blue painter's tape to cover the engraving area and run the job at high speed, low power to see exactly how the circle distorts
  2. Adjust in design software: Make the circle wider (an ellipse) to compensate for the diameter variation. The exact adjustment depends on your taper and design position—eyeball it and test again

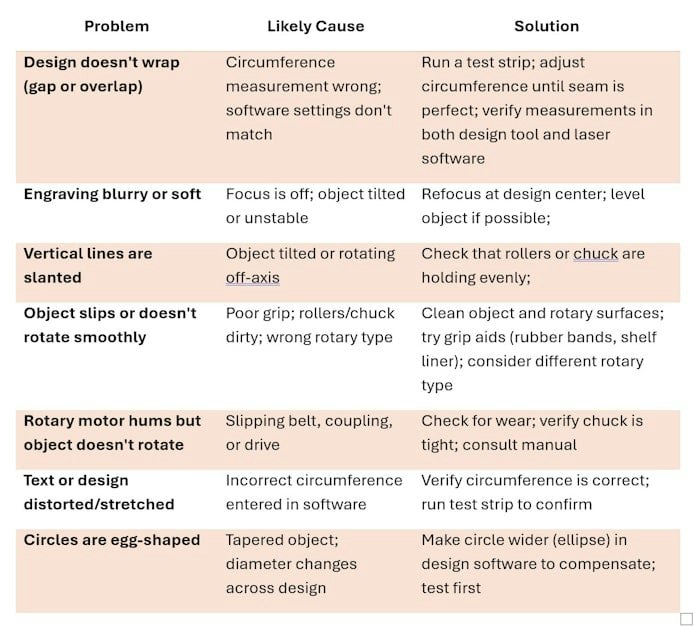

Troubleshooting Quick Reference

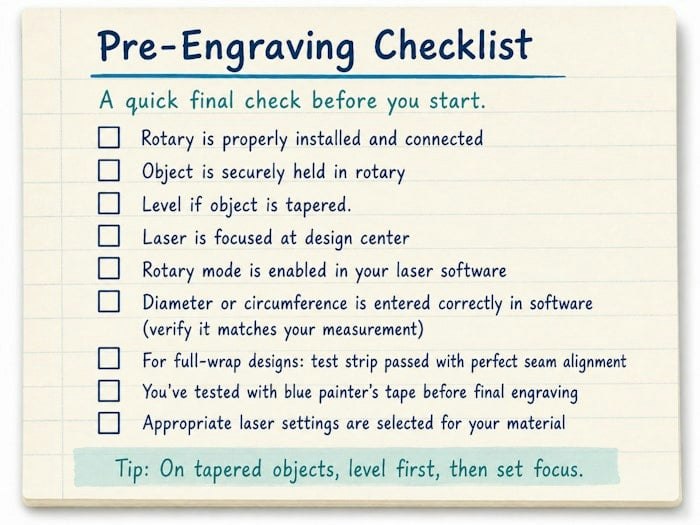

Pre-Engraving Checklist

Technical Reference: Steps Per Rotation

If your laser software (typically LightBurn with certain rotary types) asks for "steps per rotation," this setting tells the software how many motor steps your rotary needs to complete one full 360-degree rotation.

This is mainly used by stepper motor-based rotaries (like those from OMTech, Thunder Laser, and Ruida controllers). Trotec and some other systems calculate this automatically from diameter input, so they don't require manual entry.

To find or verify your steps per rotation:

  1. Run a test engraving of a known shape (like a square) at a known circumference
  2. Measure the actual output
  3. If the output is too small or too large, adjust the steps value up or down accordingly
  4. Retest until accurate

For detailed calibration instructions specific to your system, consult your rotary manual or your laser software's documentation.
